Interpreter

Some imaginary company has very funny business, when people have garage sales, they go and buy everything they can fit into few of their trucks. In the end of the day they are very interested to know how much goods inside of each of the trucks cost. We don’t really care what they do after. But we are interested in knowing how they calculate cost of goods. Many things they buy are packed into packages, sometimes they put similar goods into one package, sometimes they double-triple pack fragile things. So company deals with trucks stuffed with packages of goods. The other day truck's guts can hit different cost number. In the context of current date prices, having graph of packages/goods we can calculate total cost, this can be done by man, but company goes different way, trucks do it automatically. Each truck accumulates cost of each package, each package calculates cost of what’s inside (packages/goods), any stuff knows its today’s price.

INTERPRETER

Interpreter is design pattern that allows to represent language grammar and knows how to evaluate its sentences into parts that can be understood.

Talking about our dummy example, language would be truck/packages/goods, its current sentence would be stuffed truck ‘cause it has graph of language parts, and the meaning of the sentence would be total cost of the goods inside.

There are two kinds of expressions in the language, those that can be understood immediately, called terminal expressions, and those that require language logic to be applied to be understood, called nonterminal expressions.

Talking about our example, terminal expression would be old TV, Laptop or Bed, since we know that today old TV costs 100, Laptop 500 and Bed 400, and nonterminal expression would be package in which they put 3 laptops, where we have to apply logic to understand what it means to us.

Let’s take a look at our example source code:

Here are expressions our language contains:

    // Abstract expression
    public abstract class Goods
    {
        public abstract int Interpret(CurrentPricesContext context);
    }

    // Nonterminal expression
    public class GoodsPackage : Goods
    {
        public List<Goods> GoodsInside { get; set; }

        public override int Interpret(CurrentPricesContext context)
        {
            var totalSum = 0;
            foreach (var goods in GoodsInside)
            {
                totalSum += goods.Interpret(context);
            }
            return totalSum;
        }
    }

    // Terminal expression
    internal class TV : Goods
    {
        public override int Interpret(CurrentPricesContext context)
        {
            int price = context.GetPrice("TV");
            Console.WriteLine("TV: {0}", price);
            return price;
        }
    }

    // Here other terminal expressions go (Laptop, Bed)

As you can see GoodsPackage knows that for to be understood it has to accumulate cost of each things inside. In our example we have very simple language with only one rule for it, but in more complex languages we will have something different, like for math it could be (“+”, “-”, “/”, “*”, “Sqrt”, “Integral”, and so on…). Math would also have variety of terminal expressions, like numbers or variables, value of which can be substituted.

Two more things are left. It is context, which represent information global to the whole process, in our example prices as of today, and it is client, which actually somehow gets sentence and invokes method Interpret in order to understand sentence. Here below is only Client, I do not show CurrentPricesContext, since it would bring only noise to this example.

        public void RunInterpreterDemo()
        {
            // create syntax tree that represents sentence
            var truckWithGoods = PrepareTruckWithGoods();
            // get latest context
            var pricesContext = GetRecentPricesContext();
            // invoke Interpret
            var totalPriceForGoods = truckWithGoods.Interpret(pricesContext);

            Console.WriteLine("Total: {0}", totalPriceForGoods);
        }

        private CurrentPricesContext GetRecentPricesContext()
        {
            var pricesContext = new CurrentPricesContext();
            pricesContext.SetPrice("Bed", 400);
            pricesContext.SetPrice("TV", 100);
            pricesContext.SetPrice("Laptop", 500);
            return pricesContext;
        }

        public GoodsPackage PrepareTruckWithGoods()
        {
            var truck = new GoodsPackage() { GoodsInside = new List<Goods>() };

            var bed = new Bed();
            var doubleTriplePackedBed = new GoodsPackage() { GoodsInside = new List<Goods>() { new GoodsPackage() { GoodsInside = new List<Goods>() { bed } } } };
            truck.GoodsInside.Add(doubleTriplePackedBed);
            truck.GoodsInside.Add(new TV());
            truck.GoodsInside.Add(new TV());
            truck.GoodsInside.Add(new GoodsPackage() { GoodsInside = new List<Goods>() { new Laptop(), new Laptop(), new Laptop() } });

            return truck;
        }

Quickly output:
Bed: 400
TV: 100
TV: 100
Laptop: 500
Laptop: 500
Laptop: 500
Total: 2100

Interpreter is one of the design patterns that you most likely will never use in your life. It is bit cumbersome and has very specific application.

My Design Patterns Table

WCF and versioning – my adventures (or “The resource MultipleIdDefinition was not found”)

Hey, I believe that everyone of us have ever dealt with versioning. Versioning inside of WCF doesn’t exist if so to say, but it is very easy to keep all your stuff running until you actually have to validate schema of the messages.

In recent time me with my team had to make our Phone client of version 1.0 and 1.1 work with either version of server 1.0 or 1.1. In other words we had 4 cases. Two of them are obviously non-problematic and two are not that clear. Accordingly to MSDN there is no direct support for versioning in WCF, except of that each data elements are optional by default. This means that if you haven’t specified opposite all of your DataMembers are going to be null if they are missed in incoming XML.

So having this in mind I expected that all of our versioning scenarios will go smoothly, but this did not happen. We were getting ugly exception looking like this: “The resource MultipleIdDefinition was not found”. Honestly it was very surprisingly since google search did not give me any good answer for this.

So here are steps that I took to figure out where the problem is:

• Made the way up to the deserialization code.
• Debugged to the point where I can see actual payload.
• For same data request I copied payloads as is from two server versions.
• Did text comparison and found what I was looking for.

Added properties could not brake serialization, so I found other differences, which were additional z:Id=”i7” right after one of the data contracts. Some of you might know that this is cause of IsReference=true of the DataContract. So I did research if this really has been changed between version 1.0 and 1.1 and found out that it was.

So, long story short, if you having some issues with serialization inside of WCF when dealing with versioning think less about new or even deleted elements of you contract, but think more what can cause mismatch in messages. And dong forget to see source control logs.

Proxy

Do you imagine yourself defusing bomb? Scary? Even if you couldn’t imagine this there is such profession as bomb defuser and people owning it are human as well, so I bet they feel scary when near bomb. For our luck there is technology nowadays that allows remotely operate with some kind of robot that can defuse bomb. Using robots also allows to do more complex operations with safely lifting bombs, and manipulating them. I bet human hands would shake while holding bomb, not robot’s.

Connection with robot is wireless of course and you would have special suit that makes you body operate robot remotely as you were it. (Ok on the picture above you see not such advance robot, but lets imagine we are in future.) Robot still has control panel on it that will allow operating it directly. This is needed just in case connection could not be made (say someone is blocking signal).

To summarize, robot is heavy instance and it can be operated directly or you can proxy your requests through special suit.

PROXY

Proxy is design pattern that surrogates real object and proxies requests to it when needed, it also instantiates real object if it is not yet instantiated.

Talking about example above, object which we use is robot (RobotBombDefuser) it is heavy stuff, which we move using remote controls aka. proxy suit (RobotBombDefuserProxy). As this suit works wirelessly with robot it knows how to connect to real object and how to pass your requests to it. The same is happening when we connect to some remote web server and call methods on it.

Proxy is also often used when you need lazy initialization. In this case instead of connecting to remote resource there is simple check if object is not null and then assigning an instance if needed.

Let’s see what we have in our example. Here is robot itself.

    public class RobotBombDefuser
    {
        private Random _random = new Random();
        private int _robotConfiguredWavelength = 41;
        private bool _isConnected = false;

        public void ConnectWireless(int communicationWaveLength)
        {
            if(communicationWaveLength == _robotConfiguredWavelength)
            {
                _isConnected = IsConnectedImmitatingConnectivitiyIssues();
            }
        }
        public bool IsConnected()
        {
            _isConnected = IsConnectedImmitatingConnectivitiyIssues();
            return _isConnected;
        }
        private bool IsConnectedImmitatingConnectivitiyIssues()
        {
            return _random.Next(0, 10) < 4; // immitates 40% good connection, aka. very bad
        }

        public virtual void WalkStraightForward(int steps)
        {
            Console.WriteLine("Did {0} steps forward...", steps);
        }

        public virtual void TurnRight()
        {
            Console.WriteLine("Turned right...");
        }

        public virtual void TurnLeft()
        {
            Console.WriteLine("Turned left...");
        }

        public virtual void DefuseBomb()
        {
            Console.WriteLine("Cut red or green or blue wire...");
        }
    }



Main methods that do the stuff are WalkStraightForward, TurnRight, TurnLeft, DefuseBomb. Methods to connect wirelessly and IsConnected are just for imitating reality of this app. You could omit how it works internally.

Here we have Proxy implementation. It always has reference to real object and often implements same interface if is not derived from object’s class.

    public class RobotBombDefuserProxy : RobotBombDefuser
    {
        private RobotBombDefuser _robotBombDefuser;
        private int _communicationWaveLength;
        private int _connectionAttempts = 3;

        public RobotBombDefuserProxy(int communicationWaveLength)
        {
            _robotBombDefuser = new RobotBombDefuser();
            _communicationWaveLength = communicationWaveLength;
        }

        public virtual void WalkStraightForward(int steps)
        {
            EnsureConnectedWithRobot();
            _robotBombDefuser.WalkStraightForward(steps);
        }

        public virtual void TurnRight()
        {
            EnsureConnectedWithRobot();
            _robotBombDefuser.TurnRight();
        }

        public virtual void TurnLeft()
        {
            EnsureConnectedWithRobot();
            _robotBombDefuser.TurnLeft();
        }

        public virtual void DefuseBomb()
        {
            EnsureConnectedWithRobot();
            _robotBombDefuser.DefuseBomb();
        }

        private void EnsureConnectedWithRobot()
        {
            if (_robotBombDefuser == null)
            {
                _robotBombDefuser = new RobotBombDefuser();
                _robotBombDefuser.ConnectWireless(_communicationWaveLength);
            }

            for (int i = 0; i < _connectionAttempts; i++)
            {
                if (_robotBombDefuser.IsConnected() != true)
                {
                    _robotBombDefuser.ConnectWireless(_communicationWaveLength);
                }
                else
                {
                    break;
                }
            }
            if(_robotBombDefuser.IsConnected() != true)
            {
                throw new BadConnectionException("No connection with remote bomb diffuser robot could be made after few attempts.");
            }
        }
    }

So our proxy simply redirects requests to real object and before doing so it always ensures that connection is established, and if it is not it establishes it with three attempts and if it couldn't it then throws an exception.

So let’s see usage:

        public static void Run()
        {
            int opNum = 0;
            try
            {
                var proxy = new RobotBombDefuserProxy(41);
                proxy.WalkStraightForward(100);
                opNum++;
                proxy.TurnRight();
                opNum++;
                proxy.WalkStraightForward(5);
                opNum++;
                proxy.DefuseBomb();
                opNum++;

                Console.WriteLine();
            }
            catch (BadConnectionException e)
            {
                Console.WriteLine("Exception has been caught with message: ({0}). Decided to have human operate robot there.", e.Message);

                PlanB(opNum);
            }
        }

        private static void PlanB(int nextOperationNum)
        {
            RobotBombDefuser humanOperatingRobotDirectly = new RobotBombDefuser();

            if(nextOperationNum == 0)
            {
                humanOperatingRobotDirectly.WalkStraightForward(100);
                nextOperationNum++;
            }
            if (nextOperationNum == 1)
            {
                humanOperatingRobotDirectly.TurnRight();
                nextOperationNum++;
            }
            if (nextOperationNum == 2)
            {
                humanOperatingRobotDirectly.WalkStraightForward(5);
                nextOperationNum++;
            }
            if (nextOperationNum == 3)
            {
                humanOperatingRobotDirectly.DefuseBomb();
            }
        }
    }

In sample code above you can see usage of the defuser proxy, there is also “plan B”, when direct instance of the defuser is created and used. Code might look bit complex, because of that opNum and nextOperationNum noise. I added it to ensure robot continues it work from where it stopped.

Output:

Did 100 steps forward...
Turned right...
Exception has been caught with message: (No connection with remote bomb diffuser robot could be made after few attempts.). Decided to have human operate robot there.
Did 5 steps forward...
Cut red or green or blue wire...

My implementation of this Design Pattern is slightly different from its original implementation in GoF book where you have two derived classes both from some interface or superclass. But I think in real world implementation with deriving from already existing class is more common. For example such proxy is used always you need to have virtual methods for some framework, say mocking framework or ORM framework.

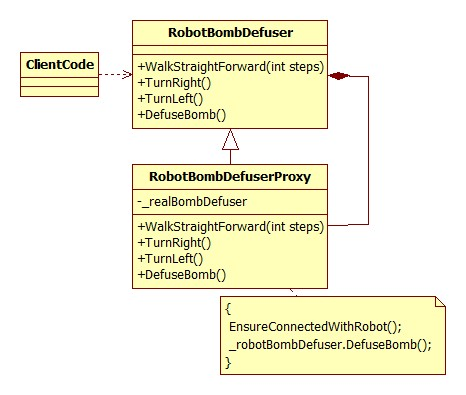

Here is UML for my example:
